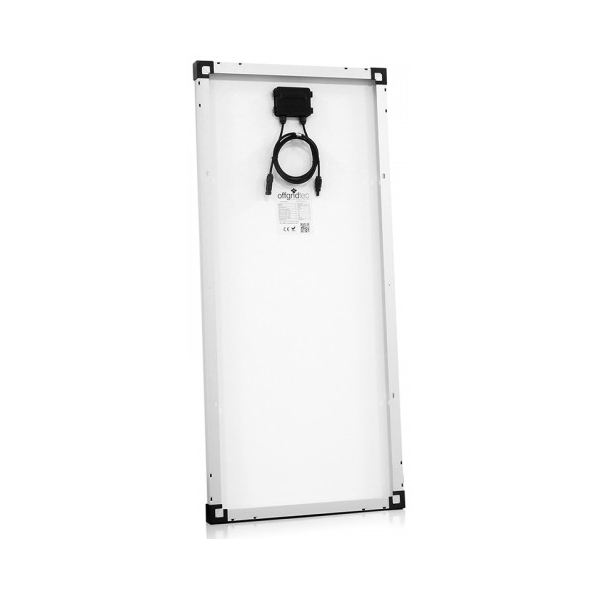

High Quality Mono Solar Panel
Hardened ESG-solarglass with weather resistant coating.
Frame: Anodized aluminium
Performance Guarantee of 10 years: <10 years 90%; <25 years 80%
Monocrystalline silicon solar cells
Nominal voltage: 17,8V (ideal for 12V-systems)
| Material | ALU |
|---|---|
| System Voltage | 12 V |
| Performance (Pmax) | 100 W |
| Generator Performance (Wp) | 100 Wp |
| Module Voltage (Vmp) | 17,8 V |
| Max. Current (Imp) | 5,62 A |
| No-Load Voltage (Voc) | 21,3 V |
| Short-Circuit Current (ISC) | 6,07 A |
| max (V) | 1000 V |
| Cell Type | Monocrystalline |
| Degree of Efficiency Cell | >18% |
| Tolerance | +/- 3% |
| Temperature Coefficient | -0,45%/°C |
| Ambient Temperature | -40°C – +85°C |
| Frame Thickness | 1 mm |
| Solar cells type | SW Monocrystalline |
| Solar Module Connection Box | PV-JB-018 |
| Connection Box Dimensions | 100 x 77.5 x 2.5 mm |
| Connection Box Protection Class | IP65 |
| Cable Cross Section | 4.0 mm – 6.0 mm |
| Mounting Holes Format | 8 x 20 mm |
| Number of Cable Entries | 2 |
| Bypass Diode | 2x IOSQO50 |
| Lenght of Pre-Installed Cables | 0.8 m |
| Pre-assembled Connectors | MC4 |
