Argo Diode Battery Combiner BCD 802

Description

Argo Diode Battery Combiners

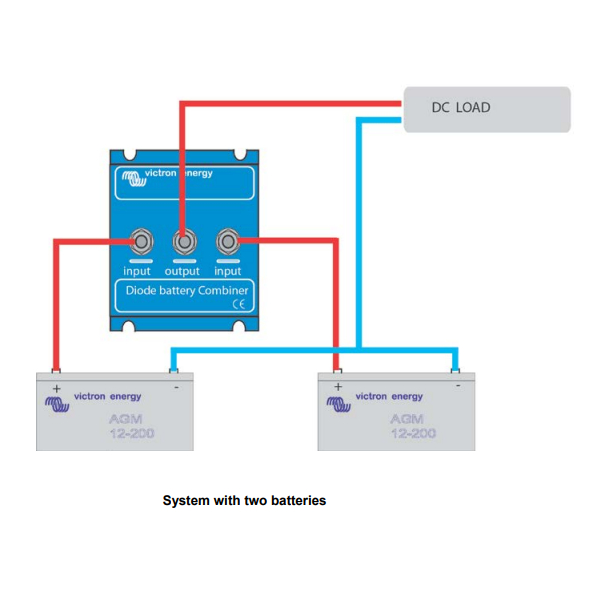

Diode Battery Combiners are used to guarantee continuous DC power to mission critical equipment, such as an electronic engine control system. With a Diode Battery Combiner two or more DC power sources can be used in parallel to supply the mission critical load. Failure of one source will not interrupt power to the critical load.

Maximum continuous current (A): 80
Number of batteries: 2
Connection: M6 bolts
Weight kg (lbs): 0,8 (1.8)
Dimensions h x w x d in mm: 60 x 120 x 75
(h x w x d in inches): (2.4 x 4.7 x 3.0)
