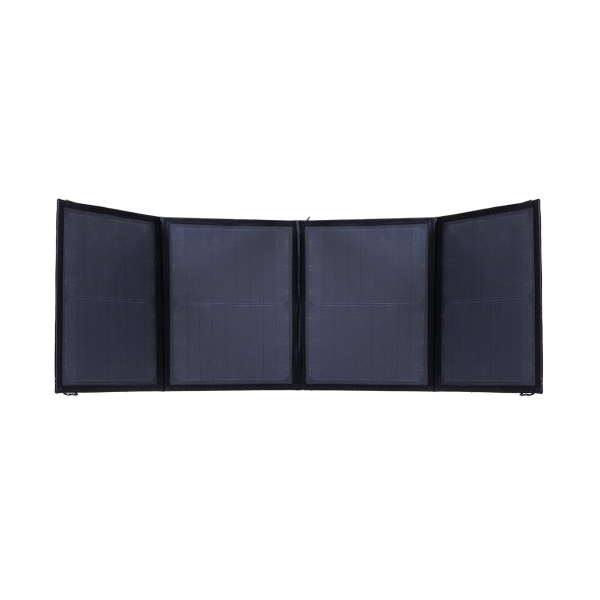

Foldable Solar Module 12V 50Wp

Description

• Rated Capacity: 50 Wp
• Number of Elements: 4 x 12,5 Wp
• Module Voltage (Vmp): 17,8 V
• Max. Charging Current (Imp): 2,8 A
• Open Circuit Voltage (Voc): 21,3 V
• Sort Circuit Current (Isc): 3,03 A
• Dimensions Closed: 360 x 290 x 60 mm
• Open Dimensions: 360 x 1160 x 20 mm
• Weight: 2,5 Kg
• Length of Connection Cable FSP-2 to Charge Controller: 4,5m
• Length of Connection Cable between Carge Contreller and Battery: 1m
• Connection to the battery terminal via: pre-assembled alligator clips on the battery cable
• Battery cable fuse: Standard flat car fuse pre-assembled in a splash-proof bracket
