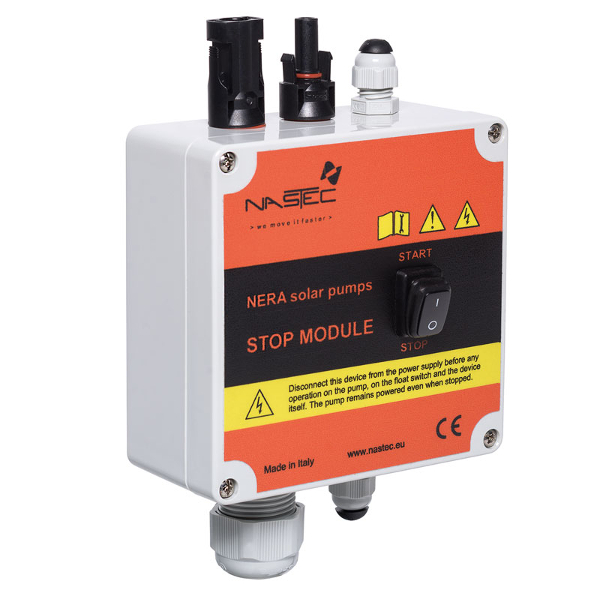

Nera STOP MODULE

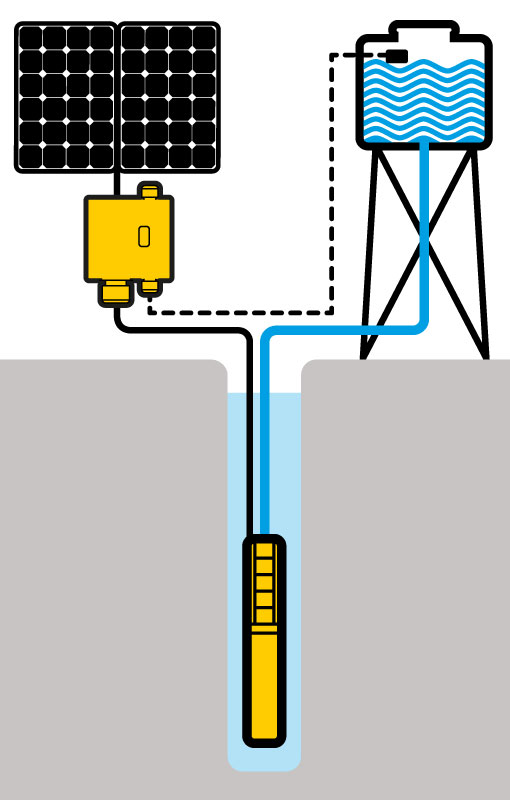

To connect NERA to the solar system, the STOP MODULE device is available as an accessory. It is equipped with:

• MC4 connectors for fast and easy panels connection.
• Button for pump start and stop.
• Connection for float or pressure switch.
• Surge protection.
• Max input voltage : 190 VDC
• Protection degree: IP65 (NEMA 4) *
• Max Ambient Temperature: 50 °C (122 °F)
• Certifications: CE

* IP65 protection grade is granted with perfect tightness of the cover screws and cable glands. It is recommended anyway to protect the SM from the direct exposure to weather and direct sunlight.

Suitable for NERA 06/04, NERA 02/01H, NERA 01/02H Solar Pumps.
