Description

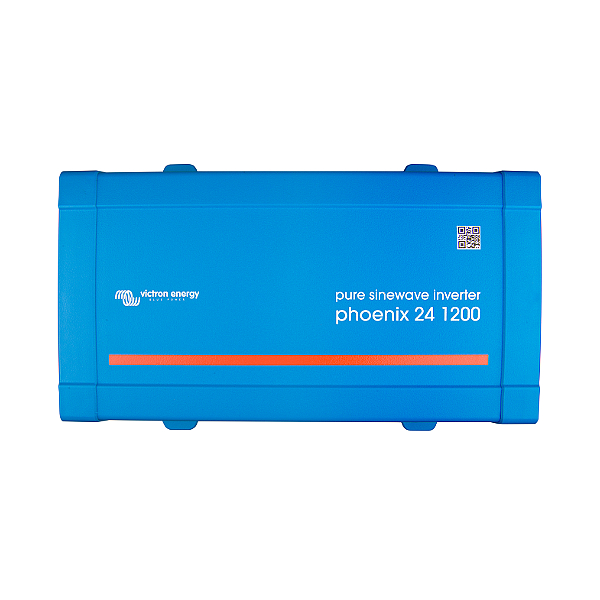

Phoenix Inverter VE.Direct
Inverter
Inverters allow you to power domestic equipment – requiring 230AC – using ‘leisure’ or ‘automotive’ batteries rated at 24V DC.
Models:250VA, 375VA, 500VA, 800VA, 1200VA
- Cont. AC power at 25 °C (VA) (1): 1200
- Cont. power at 25 °C / 40 °C (W): 1000/ 900
- Peak power (W): 2400
- Output AC voltage / frequency: 50Hz or 60Hz +/- 0,1%
- Input voltage range (V DC): 18,4 – 34,0
- Low battery alarm (V DC): 21,8
- Low battery shut down (V DC): 18,6
- Low battery restart (V DC): 21,8
- Max. efficiency (%): 94
- Zero-load power 24V (W): 9
- Zero-load power in Search Mode (W): 2,3
- Search Mode shut down / turn on (W): 20 / 30
- Protection (2): a – e
- Remote on-off: Yes
- Operating temperature range: -40 to +50°C (fan assisted cooling)
- Humidity (non condensing): max 95%
- Internal DC fuse (type: MIDI fuse) (A): 150
- Material & Colour: Aluminium Blue Ral 5012
- Protection category: IP 20
- Battery-connection: Battery cables of 1.5 meter
- Standard AC outlet: 230V: IEC-320 (IEC-320 plug included), CEE 7/4 (Schuko)
1. Non linear load, crest factor 3:1
2. Protection
a. Output short circuit
b. Overload
c. Battery voltage too high
d. Battery voltage too low
e. Temperature too high
Additional information
| Weight | 8.50 kg |
|---|---|
| Dimensions | 19.40 × 10.40 × 30.50 cm |
