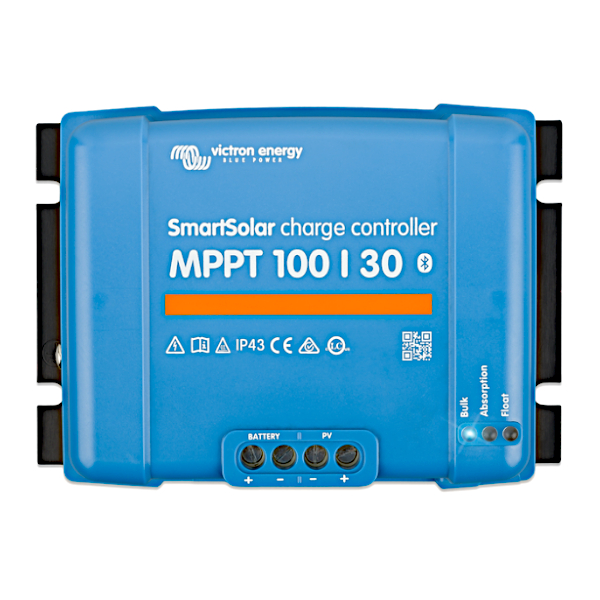

SmartSolar MPPT 100/30 |

Description

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Models:12/24 Volt

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.

SmartSolar Charge Controller MPPT 100/30

Battery voltage: 12/24V Auto Select
Rated charge current: 30A
Nominal PV power 12V 1a,b): 440W
Nominal PV power, 24V 1a,b) : 880W
Maximum PV open circuit voltage: 100V
Max. PV short circuit current 2): 35A
Maximum efficiency: 98%
Self-consumption 12V: 30 mA ,24V: 20 mA
Charge voltage ‘absorption’ Default setting: 14,4V / 28,8V (adjustable)
Charge voltage ‘float’ Default setting: 13,8V / 27,6V (adjustable)
Charge algorithm: multi-stage adaptive
Temperature compensation: -16 mV / °C resp. -32 mV / °C

Protection
-PV reverse polarity
-Output short circuit
-Over temperature

Operating temperature: -30 to +60°C (full rated output up to 40°C)
Humidity: 95%, non-condensing
Data communication port: VE.Direct: See the data communication white paper on our website

ENCLOSURE
Colour: Blue (RAL 5012)
Power terminals: 16 mm² / AWG6
Protection category: IP43 (electronic components), IP22 (connection area)
Weight: 1,3 kg
Dimensions (h x w x d): 130 x 186 x 70 mm

STANDARDS
Safety: EN/IEC 62109-1, UL 1741, CSA C22.2

1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start.
Thereafter the minimum PV voltage is Vbat + 1V.
2) A PV array with a higher short circuit current may damage the controller.
