Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the  GlobalLink 520.

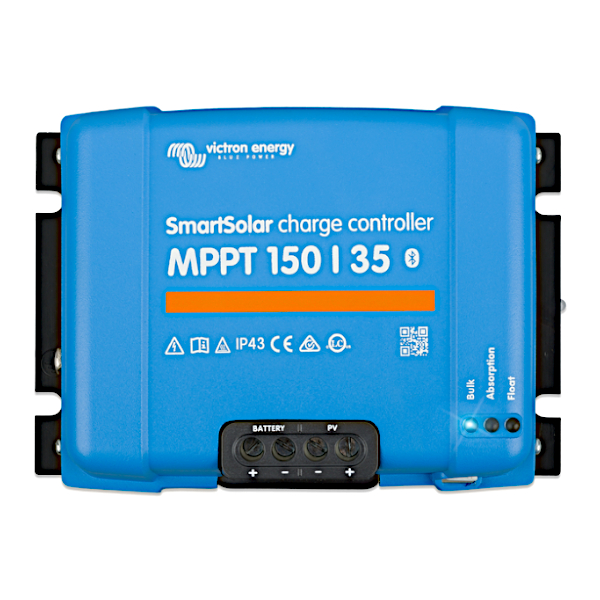

SmartSolar Charge Controller MPPT 150/35

Battery voltage: 12 / 24 / 48V Auto Select, (software tool needed to select 36V)
Rated charge current: 35A
Nominal PV power 1a, b): 12V: 500W / 24V: 1000W / 36V: 1500W / 48V: 2000W
Max. PV short circuit current 2): 40A
Maximum PV open circuit voltage: 150V absolute maximum coldest conditions
145V start-up and operating maximum
Maximum efficiency: 98%
Self-consumption: 12V: 20mA, 24V: 15mA 48V: 10mA
Charge voltage ‘absorption’ Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable)
Charge voltage ‘float’ Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable)
Charge algorithm: multi-stage adaptive (eight pre-programmed algorithms)
Temperature compensation: -16 mV / -32 mV / -64 mV / °C

Protection
-PV reverse polarity
-Output short circuit
-Over-temperature

Operating temperature: -30 to +60°C (full rated output up to 40°C)
Humidity: 95%, non-condensing
Data communication port: VE.Direct See the data communication white paper on our website

ENCLOSURE
Colour: Blue (RAL 5012)
Power terminals: 16 mm² / AWG6
Protection category: IP43 (electronic components), IP22 (connection area)
Weight: 1,25 kg
Dimensions (h x w x d): 130 x 186 x 70 mm

STANDARDS
Safety: EN/IEC 62109-1, UL 1741, CSA C22.2

1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start.
Thereafter the minimum PV voltage is Vbat + 1V.
2) A PV array with a higher short circuit current may damage the controller
