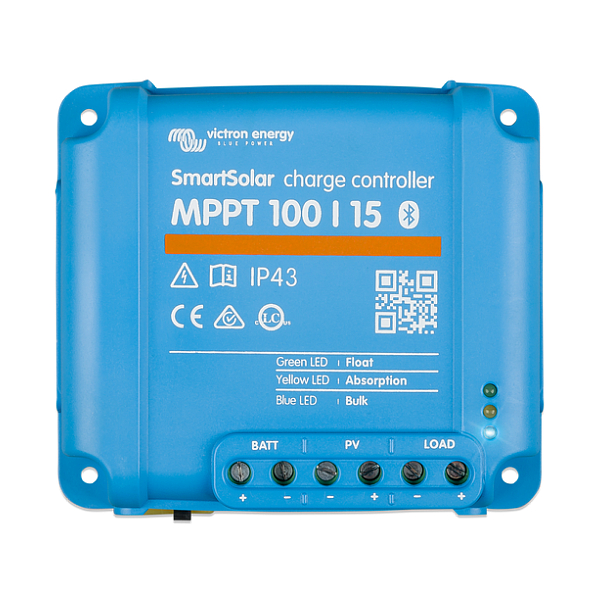

Victron SmartSolar MPPT, 100/15 |

Description

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Battery voltage: 12/24V Auto Select
Maximum battery current: 15A
Nominal PV power, 12V 1a,b): 220W
Nominal PV power, 24V 1a,b): 440W
Max. PV short circuit current 2): 15A
Automatic load disconnect: Yes, maximum load 15A
Maximum PV open circuit voltage: 100V
Peak efficiency: 98%
Self consumption: 12V: 25 mA 24V: 15 mA
Charge voltage ‘absorption’: 14,4V / 28,8V (adjustable)
Charge voltage ‘equalization’: 16,2V / 32,4V (adjustable)
Charge voltage ‘float’: 13,8V / 27,6V (adjustable)
Charge algorithm: multi-stage adaptive
Temperature compensation: -16mV / °C resp. -32mV / °C
Continuous load current: 15A
Low voltage load disconnect: 11,1V / 22,2V or 11,8V / 23,6V 6V or BatteryLife algorithm
Low voltage load reconnect: 13,1V / 26,2V or 14V / 28V or BatteryLife algorithm
Protection: Battery reverse polarity (fuse) Output short circuit / Over temperature
Operating temperature: -30 to +60°C (full rated output up to 40°C)
Humidity: 100%, non-condensing
Maximum altitude: 5000m (full rated output up to 2000m)
Environmental condition: Indoor type 1, unconditioned
Pollution degree: PD3
Data communication port: VE.Direct. See the data communication white paper on our website
Colour: Blue (RAL 5012)
Power terminals: 6mm² / AWG10
Protection category: IP43 (electronic components) IP22 (connection area
1a) If more PV power is connected, the controller will limit input power
1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V.
2) A higher short circuit current may damage the controller in case of reverse polarity connection of the PV
