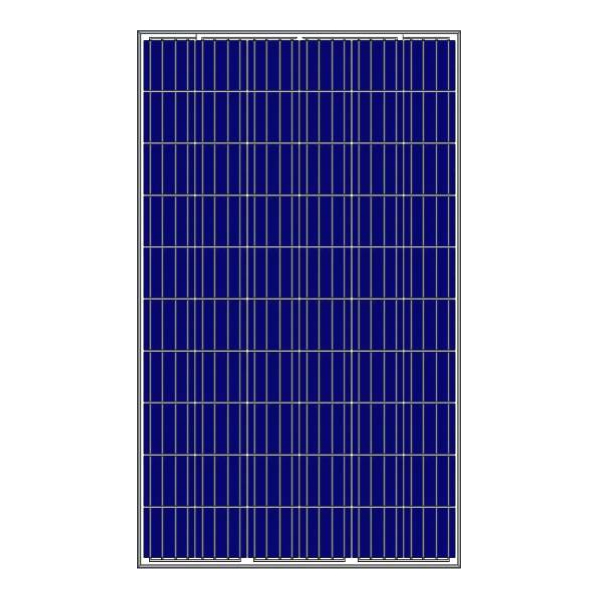

AS-6P30 285Wp POLYCRYSTALLINE SOLAR MODULE

Description

• 12 years limited product warranty
• Nominal Power (Pmax): 285W
• Open Circuit Voltage (VOC): 38.7V
• Short Circuit Current (ISC): 9.42A
• Voltage at Nominal Power (Vmp): 31.5V
• Current at Nominal Power (Imp): 9.00A
• Module Efficiency (%): 17.52
• Operating Temperature: -40°C to +85°C
• Maximum System Voltage: 1000V DC
• Fire Resistance Rating: Type 1 (in accordance with UL1703)/Class C(IEC61730)
• Maximum Series Fuse Rating: 15A
