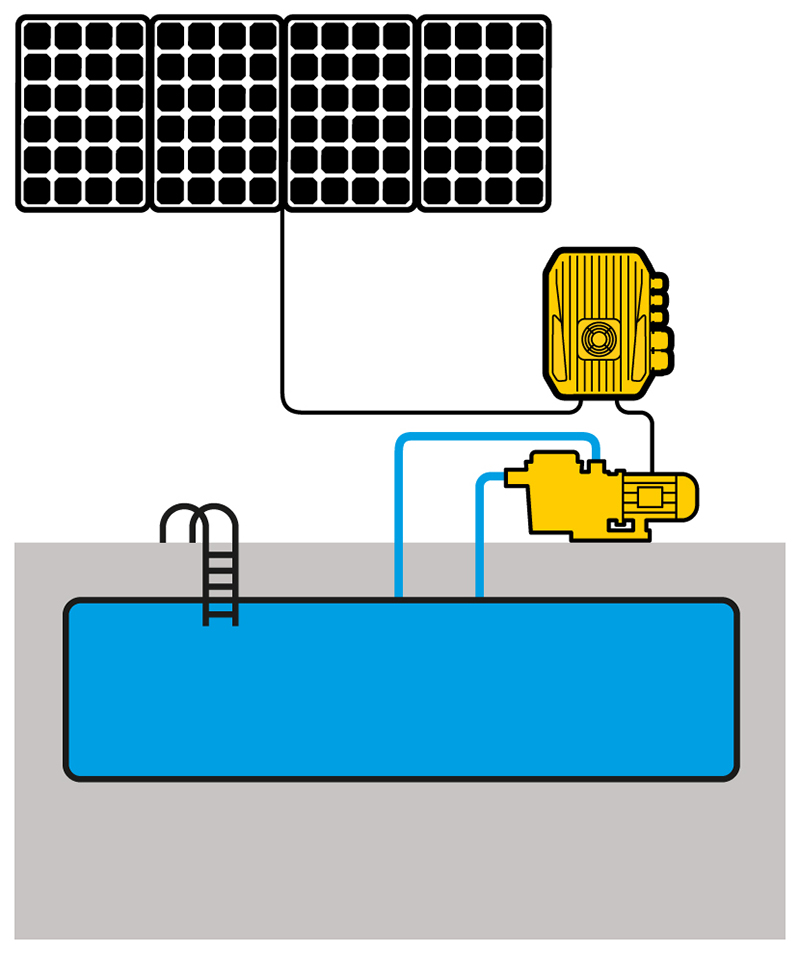

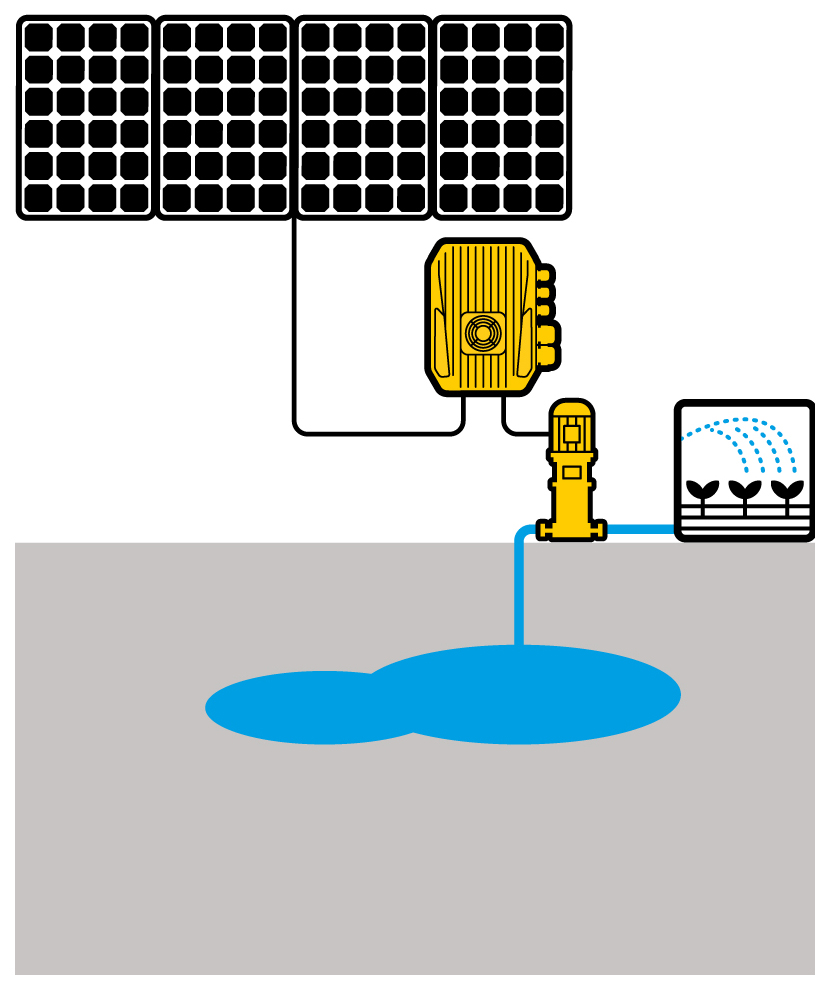

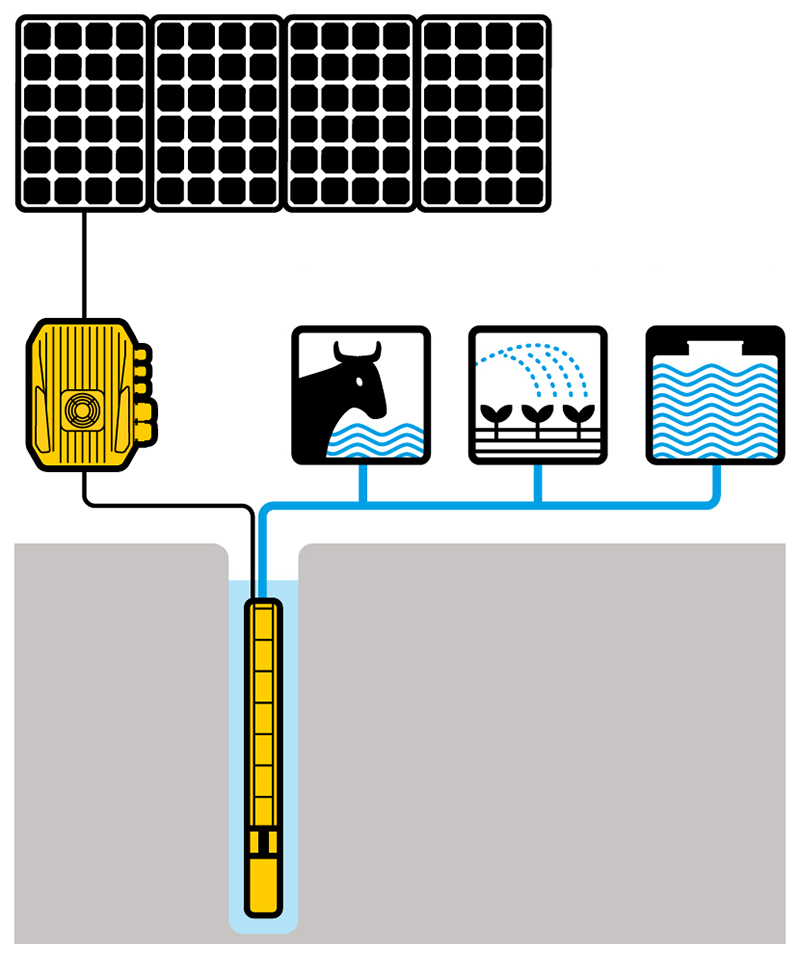

Ideal for any kind of solar pumping application
Allows:
- New solar pumping systems creation.
- Conversion of existing systems into solar pumping systems.
- Control of both three-phase and single-phase pumps.
- Soft start and soft stop.
- Installation on humid and dusty environments made possible by IP66 (NEMA 4X) protection degree.
- Easy and fast commissioning thanks to initial configuration wizard.

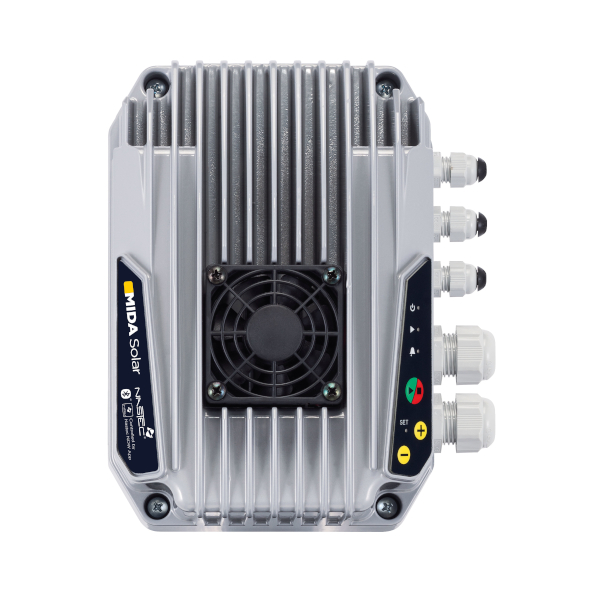

- High thermal and mechanical performance thanks to aluminium case and independent ventilation.
| Model | V in DC | V in AC * | Max V out | Max I out | P2 motor power ** | Size | Net weight | Packing dimensions | Total weight | |
| VDC | VAC | VAC | A | VAC | kW | kg | mm | kg | ||
| MIDA Solar 203 | 90 – 400 | 90 – 265 | 250 | 5,0 | 1×230 3×230 |
0,55 1,10 |
1 | 2,6 | 220x170x170 | 2,8 |
* AC power available only for MIDA Solar MP models.
** Typical motor power. It is recommended to refer to rated motor current when selecting the MIDA Solar model.
General specifications
| Rated frequency | 50 – 60 Hz (+/- 2%) |
| Ambient temperature | -10 – 50°C (-14 – 122°F) |
| Max. altitude at rated current | 1000 m |
| Protection degree | IP66 |
| Settable digital outputs N.O. or N.C. | 1. Motor run signal 2. Alarm signal |
| Analog inputs (10 or 15 VDC) | 1. 4 – 20 mA 2. 4 – 20 mA 3. 0 – 10 VDC 4. 0 – 10 VDC |
| Digital inputs | 4 digital inputs, configurable N.O. or N.C. |
| Communication | RS485 MODBUS RTU, Bluetooth® SMART* (4.0) |
